EGLI | FASA – Filling and Wrapping Machine

EGLI - 6

EGLI | FASA – Filling and Wrapping Machine

Brand Butter Machines Tags Automation system, EGLI, filling, packaging system, packing

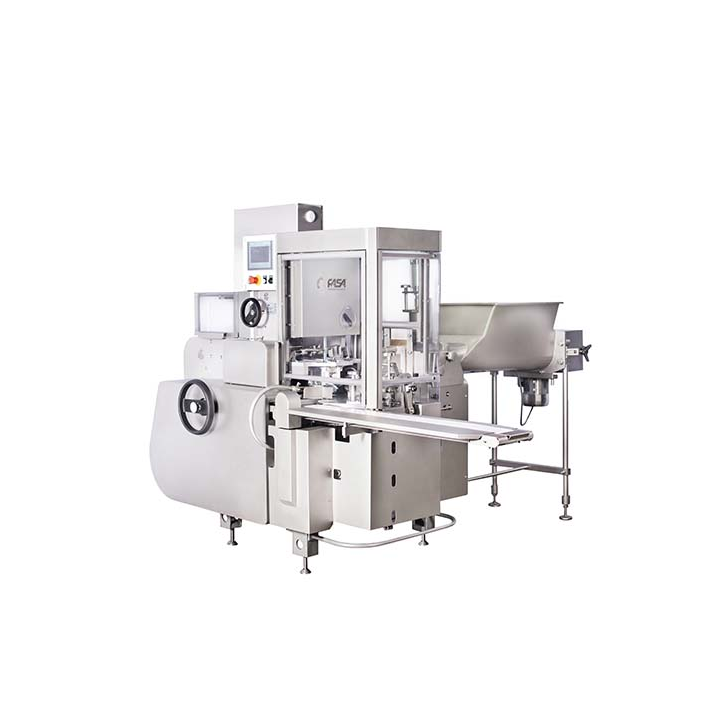

ARM-B2/B3 is designed to fill and wrap butter and margarine in aluminium foil, parchment paper or ecoline. Two product feeding options are available: hopper with augers or direct feed from the production line via resting tube.

– Convenient to operate
– Integrated lubrication system
– Partial CIP option
– Comfortable package height adjustment

MAIN FEATURES	>Foil centering device with photocell; >PLC and HMI with Touch Screen; >Stainless steel table with syntetic inserts; >Stainless steel dosing unit; ARM-B2 100-250 g; ARM-B3 250-500 g; >Pneumatic rotor switch; >Machine body covers from stainless steel; >Pneumatic compensator; >UV lamp; >Machine safety covers in accordance with CE safety requirements; >Belt driven foil broaching shaft instead of chain; >Fully automatic lubrication system; >Easy to shift between portion weight by changing the height of brick, height adjustable by handle, the adjustment points are marked with a ruler; >Two sensors for foil tracking (roll width control; end of the roll); >Stationary foil roll spindle.

MAIN FEATURES

>Foil centering device with photocell;

>PLC and HMI with Touch Screen;

>Stainless steel table with syntetic inserts;

>Stainless steel dosing unit;
ARM-B2 100-250 g;
ARM-B3 250-500 g;

>Pneumatic rotor switch;

>Machine body covers from stainless steel;

>Pneumatic compensator;

>UV lamp;

>Machine safety covers in accordance with CE safety requirements;

>Belt driven foil broaching shaft instead of chain;

>Fully automatic lubrication system;

>Easy to shift between portion weight by changing the height of brick, height adjustable by handle, the adjustment points are marked with a ruler;

>Two sensors for foil tracking (roll width control; end of the roll);

>Stationary foil roll spindle.

From

"*" indicates required fields

More information: EGLI Butter
