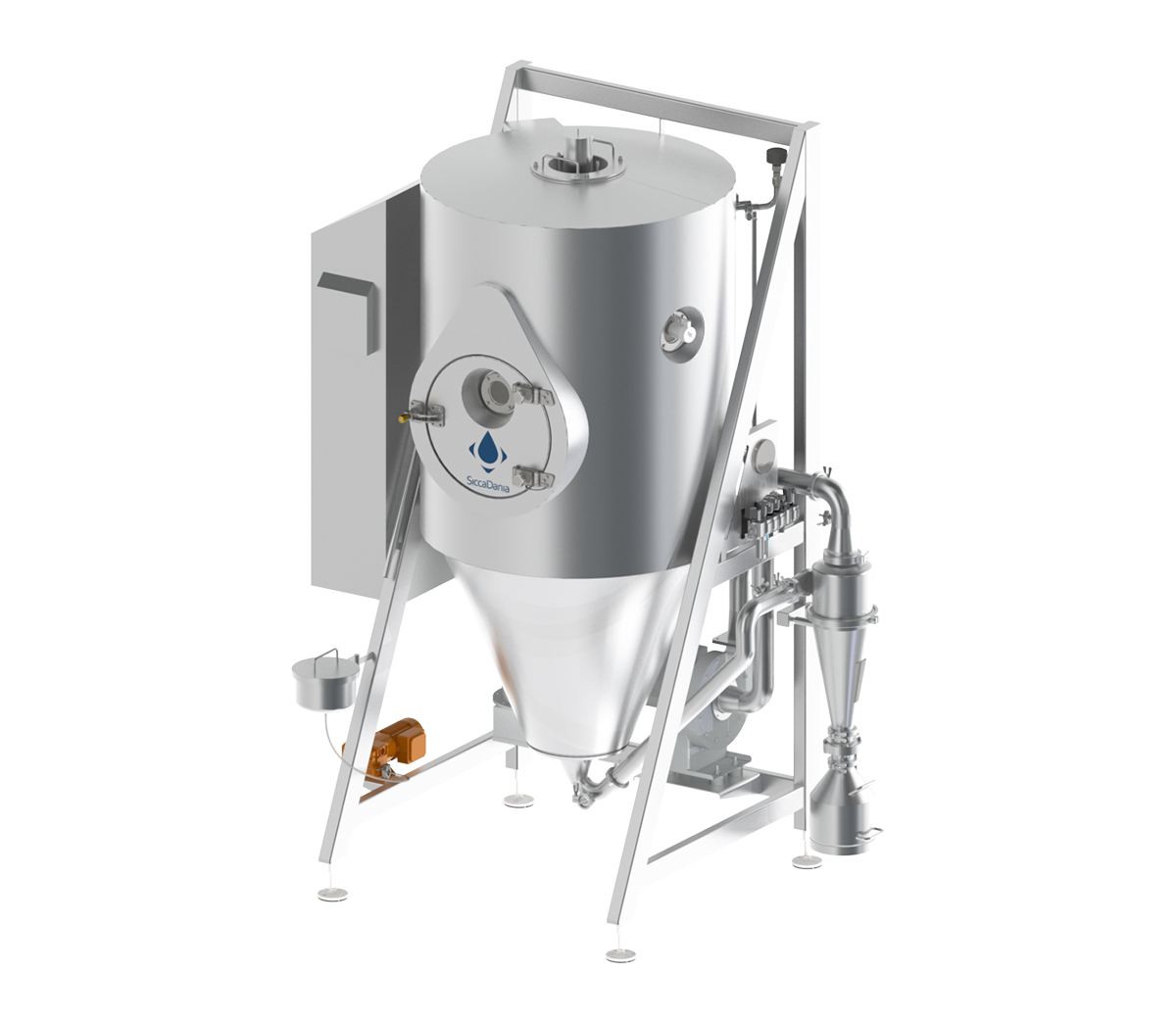

SD900 – Spray Dryer
SiccaDania’s smallest spray dryer is the SD900 with a chamber diameter of 900 mm it is targeted for R&D work as well as experimental scale production. It is available as a standard plant and features a range of optional items and modules, thus enabling customisation to match individual requirements.
The SD900 is available in two configurations – a single-stage and a multistage configuration.
| Single-Stage | Multi-stage | |
| Drying air rate, max.: | 150 kg/h | 150 kg/h |
| Inlet air temperature, max.: | 300 °C | 300 °C |
| Water evaporation capacity, max.: | 12 kg/h | 12 kg/h |
| Drying chamber diameter: | 0.9 m | 0.9 m |
| Power supply: | 3 x 400 V, 50 Hz | 3 x 400 V, 50 Hz |
| Compressed air consumption: | Up to 5.6 bar(g)
Up to 250 Nl/min |
Up to 5.6 bar(g)
Up to 250 Nl/min |
| Noise emission, max.: | 85 dB(A) | 85 dB(A) |
| Kst value, max.: | 200 bar·m/s | 200 bar·m/s |
| Pressure shock resistance: | 1 bar(g) | 1 bar(g) |
| Space requirements LxWxH: | 1.8m x 1.4m x 2.7 m | 3.5m x 2.5m x 3.0 m |
| Recommended free height: | 3.3 m | 3.9 m |
| Product contact parts: | AISI 316 | AISI 316 |
| External surfaces: | AISI 304 | AISI 304 |
| Weight, net: | 850 kg | 1200 kg |
Enquire for more information.
