Small Scale Evaporators

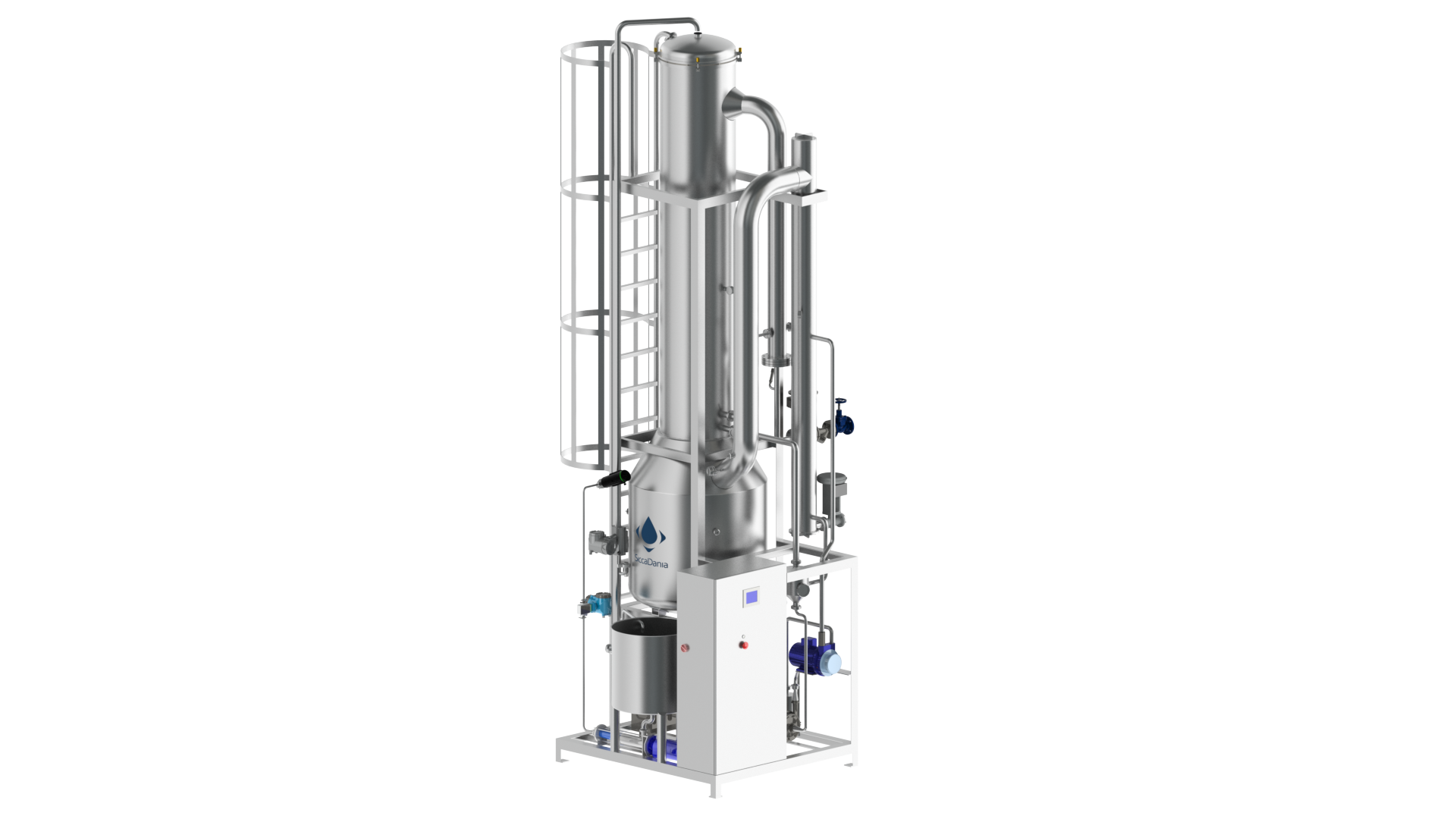

SiccaDania’s small-scale evaporator, the VAP250, is designed to simulate the larger-scale evaporators, making it possible to test a process at a smaller scale.
VAP250 is targeted for small-scale production as well as R&D work and is widely used by companies and universities worldwide. It is available in a standard version and features a range of optional modules, thus enabling customisation to match individual requirements.
| Max. water evaporation | 500 kg/h |
| Nominal W.E. capacity | 250 kg/h |
| Steam consumption | Approx. 1 kg steam per kg W.E. |
| Cooling water consumption with 22°C inlet and 46°C outlet temperature | 6000 kg/h |
| Heating surface | 25.4 m2 |
| Power supply | 3 x 400 V, 50 Hz |
| Space requirements LxWxH | 2.0 m x 2.0 m x 6.0 m |
| Recommend free height | 6.7 m |
| Weight | Approx. 1500 kg |
| External surfaces | AISI 304 |
| Product contact | AISI 316 |
| Process data range | Nominal | Minimum | Maximum | Unit |
| Water evaporation capacity | 250 | 79 | 500 | kg/h |
| Steam consumption | 250 | 79 | 500 | kg/h |
| Cooling water supply | 6000 | 3000 | 6750 | kg/h |
| Cooling water temperature, in/out | 22/46 | 22/37 | 22/63 | °C |
| Boiling point | 62 | 46 | 90 | °C |
| Delta T (jacket – boiling) | 6.5 | 2 | 12 | °C |
Enquire for more information.
